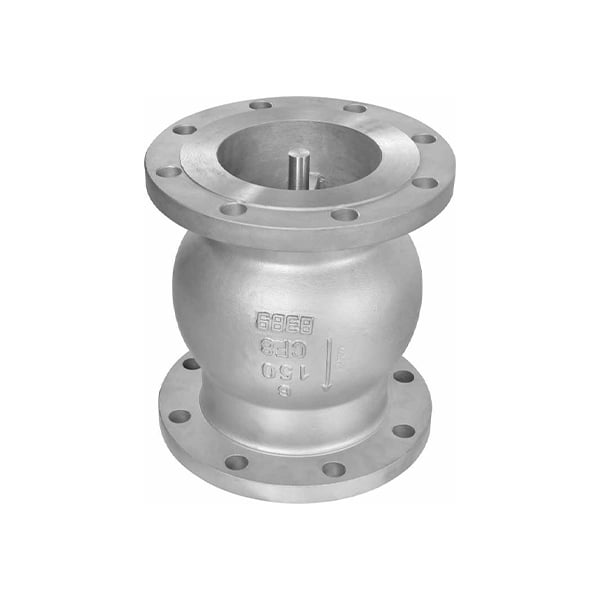

An Axial Flow Check Valve, also known as a nozzle check valve or silent check valve, is a type of non-return valve designed to allow fluid to flow in one direction while preventing backflow. Unlike traditional swing or lift check valves, the axial flow check valve employs a streamlined, axial (straight-line) flow path, which minimizes turbulence and energy loss.

Key Features:

1. Straight-Line Flow Path: The valve’s axial design allows for a smooth, uninterrupted flow, reducing pressure drop and improving efficiency.

2. Fast Response: Its lightweight piston or disc reacts quickly to changes in flow conditions, minimizing the risk of water hammer—a pressure surge or wave caused when a liquid in motion is forced to stop or change direction suddenly.

3. Compact and Lightweight: The axial flow design leads to a smaller, lighter valve that is easier to install and maintain.

4. Silent Operation: The valve’s streamlined flow path and quick closure mechanism ensure minimal noise during operation.

Applications:

Axial flow check valves are commonly used in industries such as oil and gas, water treatment, chemical processing, and power generation. They are ideal for applications requiring high efficiency, low flow resistance, and protection against water hammer.
