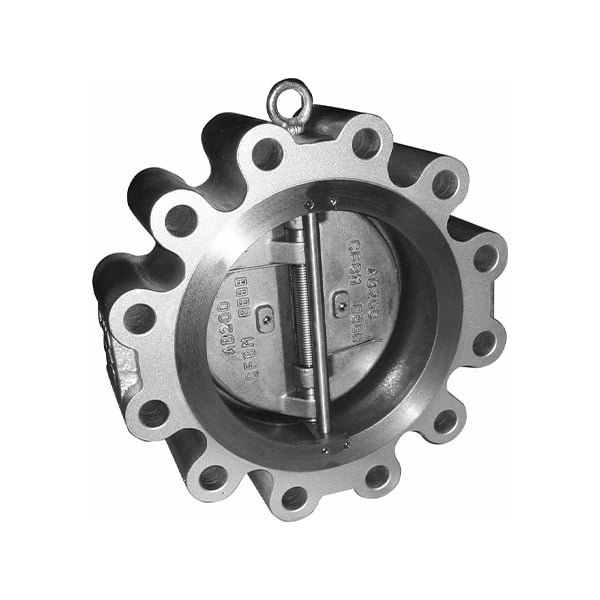

A Dual-Plate Check Valve, also known as a double-door check valve, is a type of non-return valve designed to allow fluid to flow in one direction while preventing backflow. It features two spring-loaded plates (or discs) that pivot on a central hinge pin to open with forward flow and close tightly to prevent reverse flow.

Key Features:

1. Dual-Plate Mechanism: The use of two plates instead of a single disc enhances the valve’s responsiveness and stability. The plates divide the flow, reducing the impact force on each plate and providing more balanced performance.

2. Compact and Lightweight: Dual-Plate Check Valves are generally more compact and lighter compared to other check valves, like swing check valves, which makes them easier to install and maintain.

3. Spring-Loaded Plates: The spring mechanism ensures quick and effective closure, minimizing the risk of water hammer—a sudden pressure surge caused by the abrupt stoppage of flow.

4. Reduced Pressure Drop: The streamlined design and split flow path minimize pressure drop across the valve, enhancing overall system efficiency.

Applications:

These valves are widely used in various sectors, including oil and gas, water treatment, chemical processing, and HVAC systems. They are particularly beneficial in systems where space is limited and reduced pressure drop is essential.

Advantages:

• Efficiency: The dual-plate design reduces pressure loss and turbulence.

• Quick Response: Spring-loaded plates provide rapid closure to prevent backflow.

• Durability: Constructed from robust materials suited for high-pressure and high-temperature conditions.

• Versatility: Applicable to a wide range of fluids, including gases, liquids, and slurries.
